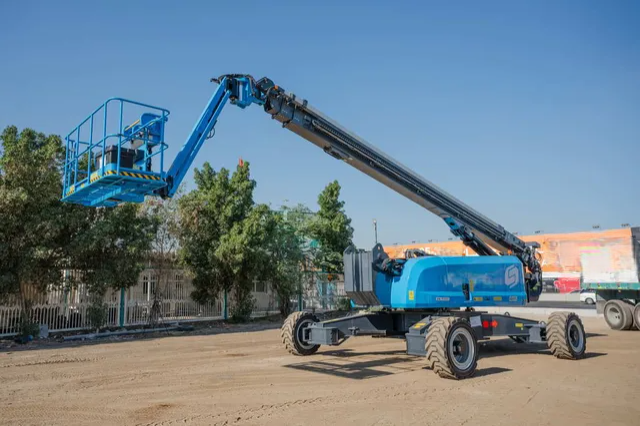

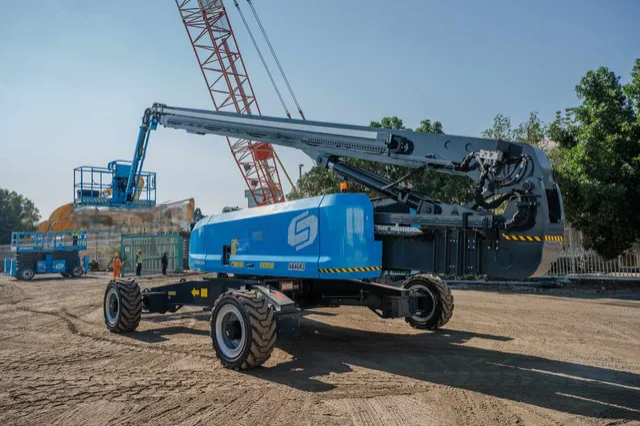

Ready To Buy 2025 Sinoboom AB46RJ Articulated Boom Lift

The New Sinoboom AB46RJ Articulated Boom Lift is built for performance, offering a 48.6-meter working height and a 455 kg load capacity—ideal for lifting operations in challenging construction and maintenance settings. Its sturdy folding boom, with hydraulic interlock and body leveling systems, ensures efficient and secure operation. Operators can reposition the platform without moving the arm itself. With 30% gradeability, it tackles uneven or inclined surfaces with ease, making it an excellent solution for elevated work.

Highlights

• High Working Height for Elevated Access
• Effortless Navigation on All Terrains
• Quick Setup and Simple Operation

Technical specification

Reference Number: AMH213

Operating weight (kg): 27,300 Kg

Engine Output: 74 kw

Max Number of Operators: 2

Working Height: 48.6 m

Platform Capacity: 455 kg

Max Horizontal Extension: 25.5 m

Power: Diesel engine

Drive × Steer: 4WD × 4WS

Turntable Rotation: 360°/Continuous

Platform Rotation: 180°

Gradeability: 45%

• Features
  • 7-inch display screen
  • Proportional control with 3 joysticks
  • Automotive-grade sleeves for all pipes
  • 4-Wheel steering and brake
  • Hydraulic platform leveling
  • Weighing system
  • Emergency stop/lowering system

Price: AED 3,24,000

Request for quote: +971525384269
