Get Your 2025 Sinoboom AB22J Plus: Enhanced Maneuverability and Safety Features

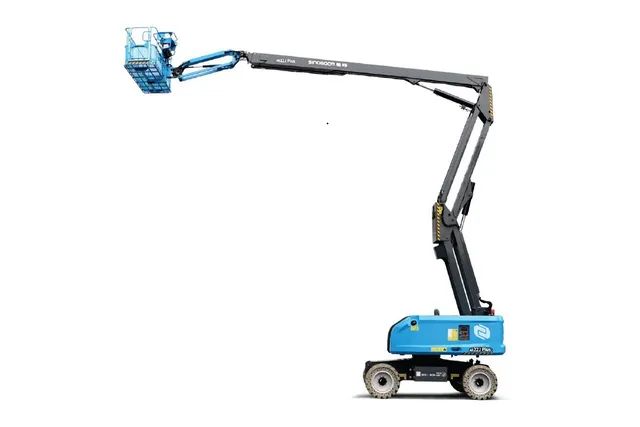

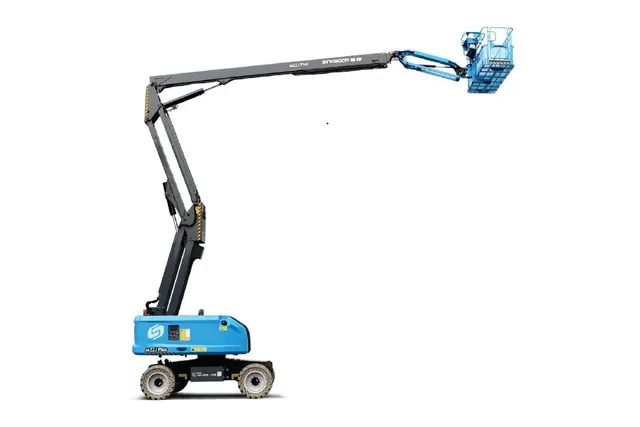

 The Sinoboom AB22J Plus articulated boom lift stands out for its adaptability and efficiency, featuring a robust 454kg heavy-duty loading capacity. Its automatic load-based performance adjustment ensures peak operational efficiency across various working scenarios. Its 4-wheel AC drive guarantees dependable climbing ability on outdoor slopes up to 40%. Continuous 360-degree turntable rotation along with active oscillating axles enhances maneuverability on challenging terrain. Engineered for flexibility, it navigates obstacles with ease and ensures safety through improved stability, a fault detection system, and precise controls for smooth and secure operation in demanding conditions.

Highlights

• Compact and Agile Design
• All-Terrain Versatility
• Safe, Advanced, Easy to Operatel

Technical specification

Reference Number: AMH268

Operating weight (kg): 12,000 Kg

Engine Output: 36 kW

Max Number of Operators: 3

Working Height: 23.6 m

Platform Capacity: 454 kg

Telematics: Available

Max Horizontal Extension: 13.35 m

Power: Diesel

Drive × Steer: 4WD x 2WS (4WS）

Turntable Rotation: 360°/Continuous

Gradeability: 40%

Features

• Proportional control with 3 joysticks
• Continuous 360° turntable rotation
• Active oscillating function
• Four-wheel steering - four-wheel brake
• Weighing system and automotive sleeves for all pipes
• AC power line to the platform
• 7-in smart screen and voice broadcast

Price: AED 163000

Request for quote: +971525384269
