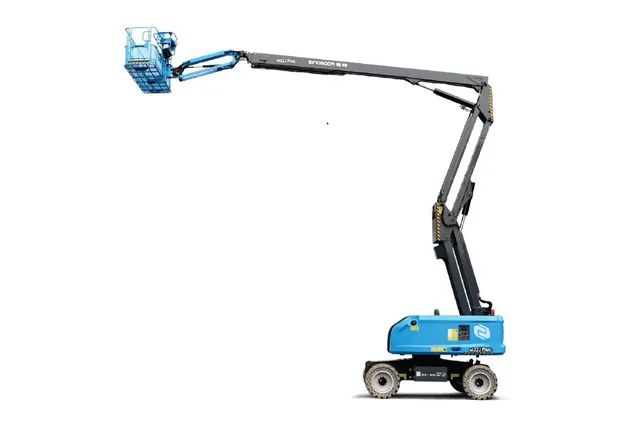

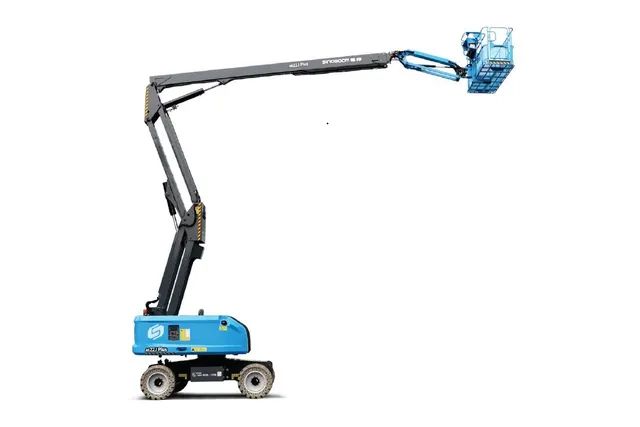

2025 Sinoboom AB22J Plus Articulated Boom Lift- Now For Sale

The Sinoboom AB22J Plus articulated boom lift delivers outstanding adaptability and operational efficiency, boasting a 454kg heavy-duty loading capacity. Its automatic performance adjustment based on load weight ensures the machine operates at peak efficiency. Equipped with a 4-wheel AC drive, it offers dependable outdoor climbing on gradients of up to 40%. Continuous 360° turntable rotation and active oscillation enhance maneuverability across rugged surfaces. Built for flexibility, it easily navigates obstacles and maintains safety through improved stability, an integrated fault diagnosis system, and precise controls, enabling secure and effective operation in challenging environments.

Highlights

• Compact and Agile Design
• All-Terrain Versatility
• Safe, Advanced, Easy to Operatel

Technical specification

Reference Number: AMH268

Operating weight (kg): 12,000 Kg

Engine Output: 36 kW

Max Number of Operators: 3

Working Height: 23.6 m

Platform Capacity: 454 kg

Telematics: Available

Max Horizontal Extension: 13.35 m

Power: Diesel

Drive × Steer: 4WD x 2WS (4WS）

Turntable Rotation: 360°/Continuous

Gradeability: 40%

Features

• Proportional control with 3 joysticks
• Continuous 360° turntable rotation
• Active oscillating function
• Four-wheel steering - four-wheel brake
• Weighing system and automotive sleeves for all pipes
• AC power line to the platform
• 7-in smart screen and voice broadcast

Price: AED 163000

Request for quote: +971525384269
