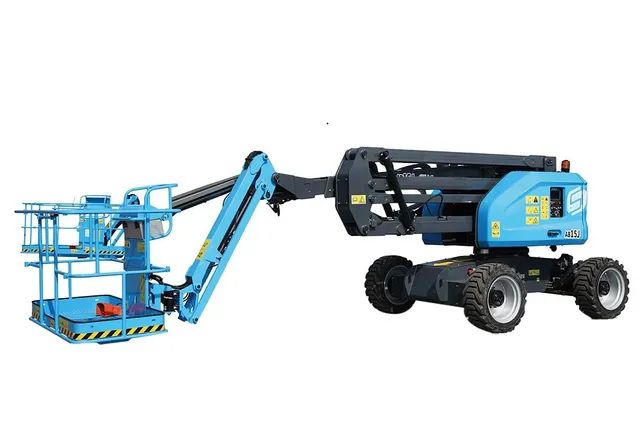

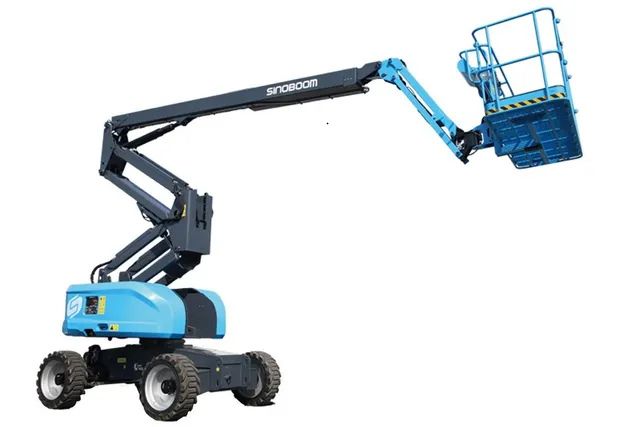

2025 Sinoboom AB15J Articulated Boom Lift- For Sale

Offering a working height of 16.7 meters, the Sinoboom AB15J engine-powered boom lift is designed to perform with precision and efficiency. Its slim profile and zero tail sweep allow for easy access to narrow or restricted areas. The platform can be moved vertically without adjusting the secondary arm, increasing flexibility on the job. A basic linkage system and hydraulic leveling ensure consistent, dependable function. With three proportional control joysticks, the lift provides accurate and responsive operation. Whether used indoors or outdoors, the AB15J is a dependable solution for high-reach needs in construction, facility management, and maintenance work.

Highlights

• Ultra-Compact Wheelbase for Tight Spaces
• Fast, Responsive Height Adjustments
• Reliable for Continuous Lifting Operations

Technical specification

Reference Number: AMH209

Operating weight (kg): 7,080 Kg

Engine Output: 36 kW

Max Number of Operators: 2

Working Height: 16.7 m

Platform Capacity: 250 kg

Max Horizontal Extension: 8.5 m

Power: Diesel engine

Drive × Steer: 4WD × 2WS

Turntable Rotation: 355°/Non-Continuous

Platform Rotation: 160°

Gradeability: 40%

Features

• Narrow width with zero tail sweep
• Oscillating function
• 7-in display screen
• 4WD× 2WS
• Proportional control with 3 joysticks
• Automotive-grade sleeves for all pipes
• Hydraulic platform leveling
• Weighing system

Price: AED 203000

Request for quote: +971525384269
